สินค้า/บริการ >> เครื่องติดตามแสงอาทิตย์แบบกลุ่ม
 จำนวนสินค้า: 1 ชิ้น
|
| เครื่องติดตามแสงอาทิตย์แบบกลุ่ม รหัสสินค้า: 000054 ราคา: 41,000.00 บาท รายละเอียด:

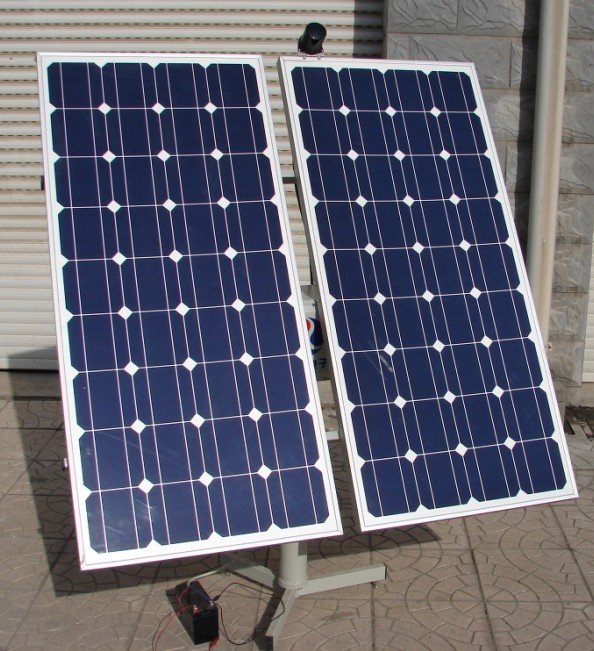

เครื่องติดตามการเคลื่อนที่แสงอาทิตย์
(Single-Axis solar sun Tracker)
เป็นตัวติดตามการเคลื่อนที่ของแสงอาทิตย์ตลอดเวลาตั้งแต่ตอนเช้าจนถึงตอนเย็นหรือรับแสงอาทิตย์ในทิศตะวันตกไปตะวันออกเพื่อเพิ่มประสิทธิภาพในการรับแสงอาทิตย์ตลอดเวลาในช่วงเวลากลางคืนแผงจะหยุดในแกนนอนเหมาะสำหรับแผงโซลาร์เซลสืมีหลายขนาดให้เลือก
รายละเอียดมีดังนี้
-
เพิ่มในการรับพลังงานแสงอาทิตย์ได้สูงถึง 40% มีประสิทธิภาพสูงใช้ไฟฟ้า 12V220V
-
การติดตั้งง่ายไม่ยุ่งยากมีอายุยาวนาน
-
การซ่อมบำรุงน้อย ดูแลรักษาง่าย ไม่เกิดสนิม
-
แกนสามารถหมุนได้รอบทิศทางทำมุมได้ทุกองศาLow Power Consumtion 1.25 kWh/year
-
ระบบเซ็นเซอร์อยู่ในชุดไม่แยกส่วนและอุปกรณ์วัดลม
ราคารวมโครงสร้างและตัววัดลม
รับน้ำหนักไม่เกิน 20kg
ขนาดใหญ๋กว่านี้ติดต่อบริษัท
มาตราฐานยุโรปและอเมริกา
1. Two axis full automatic tracking
2. tracking accuracy ,0.5
3. Small volume, convenient installation
Load Power (W): LED 30 W
-
Specification: Normal
-
Application: Home
-
Solar Power (W): 220W
-
Output Voltage (V): DC22V
-
Work Time (h):6~8 hours
-
-
Automatic tracking mode: Biaxial automatic
-
The weight of the entire system: 20KG
-
Tracking Principle:Active
-
Tracking precision: 0.5°-1°
-
power generation volume: ≥40%
Device models, technical parameters
Model
Specifications
|
RY-SL-B
|
Automatic tracking mode
|
Biaxial automatic
|
Solar Cell Type
|
Reference Dimensions 1494mm x678mm x45mm Power110Wp
|
Wind system works(m/s)
|
28.4
|
The weight of the entire system (excluding solar)(kg)
|
20
|
Range of vertical angle (angle of elevation)
|
0-90°
|
Horizontal angle range (azimuth)
|
0~355°
|
Tracking Principle
|
Active
|
Tracking precision
|
0.5°
|
The annual average power generation volume
|
≥45%
|
The system average power consumption(W)
|
≤0.5
|
Protection
|
Wind, automatic protection (can add)
|
System function
|
Automatic tracking, automatic reset, automatic protection, verify, manual control, (data acquisition: Total recharge and discharge Ann hours ,can add )
|






 ระยะเวลาการขาย : จนกว่าของจะหมด |
|
|
